Plotting#
Here we demonstrate some tools for plotting, animating results, and making movies.
MPLGrid#
Here as a simple example, we start with a harmonically trapped gas, phase imprint a dark soliton, and then watch the “evolution” as we cool into the soliton state.
from gpe.bec import State, u
s = State(Nxyz=(128,), Lxyz=(20.0,))
s[:] *= np.sign(s.xyz[0])
s.cooling_phase = 1j
e = EvolverABM(s, dt=0.1 * s.t_scale)
def plot(state):
plt.plot(state.xyz[0] / u.micron, state.get_density())
states = [s]
with NoInterrupt(ignore=True) as interrupted:
for n in range(6):
e.evolve(200)
states.append(e.get_y())
plt.clf()
plot(e.y)
display(plt.gcf())
clear_output(wait=True)

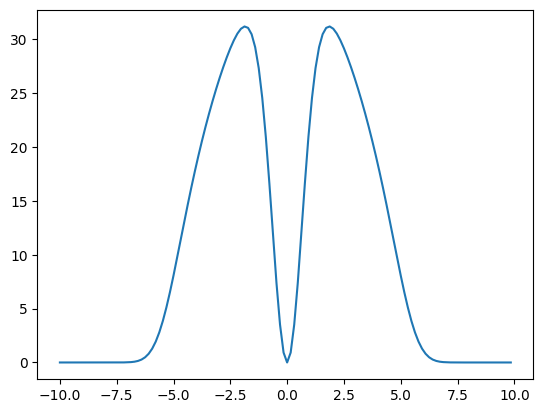

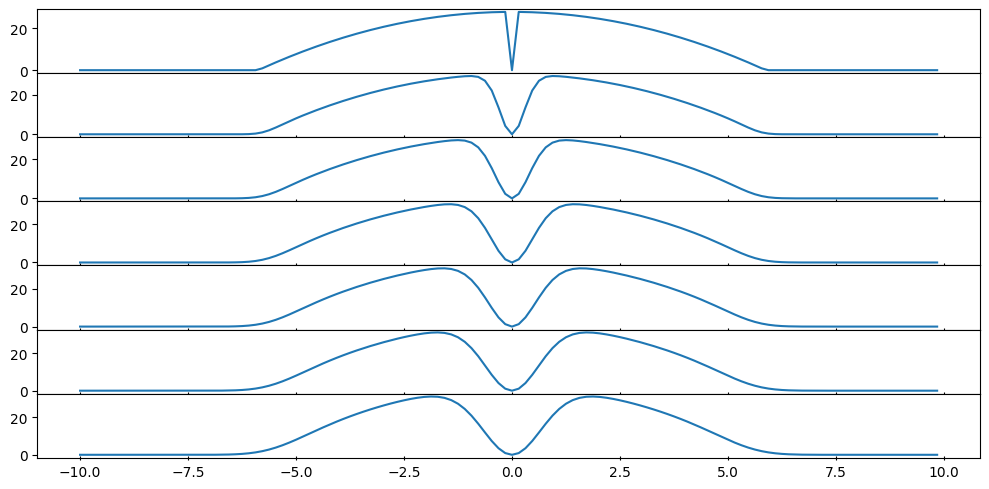

Our first demonstration is to stack these frames using MPLGrid. We can stack going down or going right.
direction='down'#
import gpe.plot_utils
reload(gpe.plot_utils)
from gpe.plot_utils import MPLGrid
plt.figure(figsize=(10, 5))
grid = MPLGrid(direction="down", share=True)
for s in states:
ax = grid.next()
ax.plot(s.xyz[0] / u.micron, s.get_density())
plt.tight_layout()

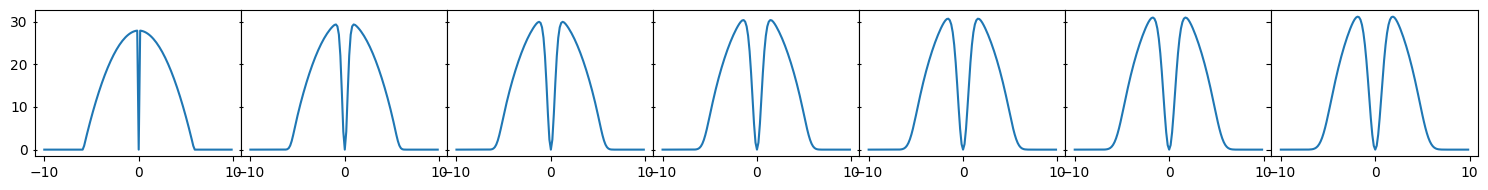

direction='right'#
The plots can also be stacked to the right:
plt.figure(figsize=(15, 2))
grid = MPLGrid(direction="right", share=True)
for s in states:
ax = grid.next()
ax.plot(s.xyz[0] / u.micron, s.get_density())
plt.tight_layout()

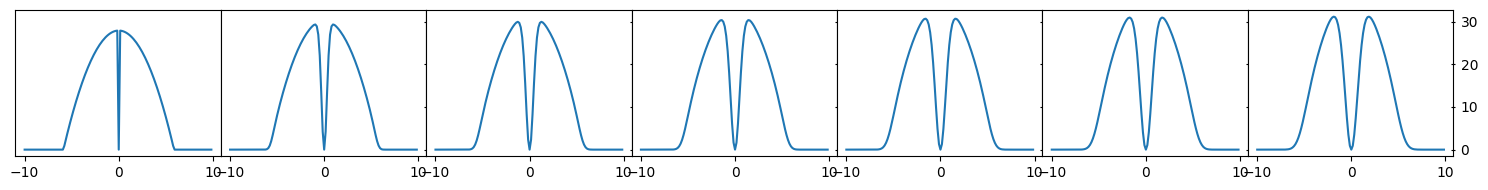

right=True#
plt.figure(figsize=(15, 2))
grid = MPLGrid(direction="right", share=True, right=True)
for s in states:
ax = grid.next()
ax.plot(s.xyz[0] / u.micron, s.get_density())
plt.tight_layout()
grid()#

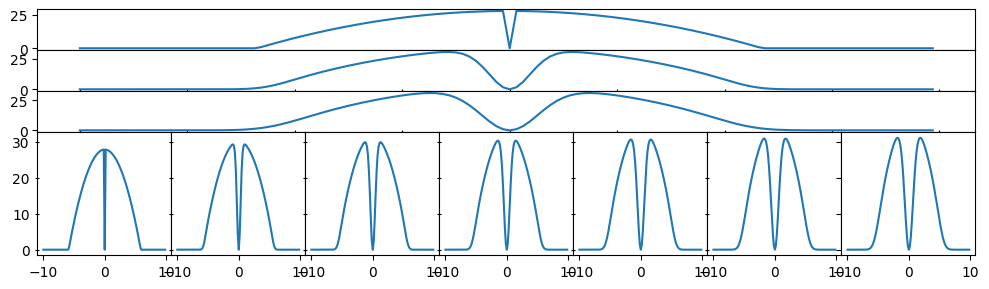

More complex layouts can be created using subgrids:
plt.figure(figsize=(10, 3))
grid = MPLGrid(direction="down", share=True)
for s in states[::3]:
ax = grid.next(size=1.0 / 3) # Make these 1/3 of the size
ax.plot(s.xyz[0] / u.micron, s.get_density())
subgrid = grid.grid(size=1, direction="right", share=True)
for s in states:
ax = subgrid.next(2)
ax.plot(s.xyz[0] / u.micron, s.get_density())
plt.tight_layout()

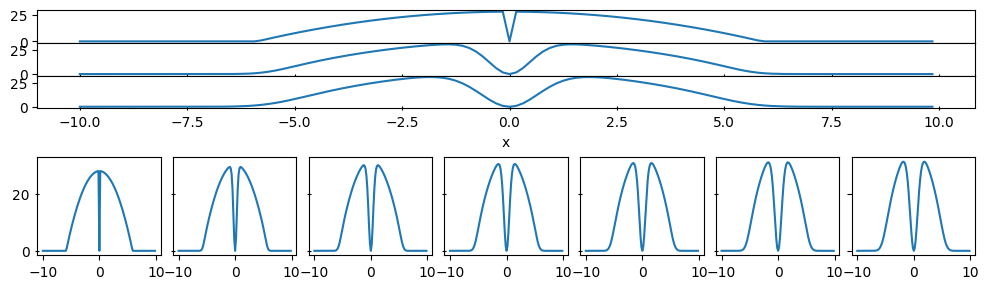

Note in this case that we obscure the x-axis of the upper plots. This is a limitation of the current MPLGrid class - all axes must either be shared or not shared. To add a space, the first three panes should be in their own subgrid:
reload(gpe.plot_utils)
from gpe.plot_utils import MPLGrid
from matplotlib.gridspec import GridSpecFromSubplotSpec
plt.figure(figsize=(10, 3))
grid = MPLGrid(direction="down", share=False, space=0.5)
subgrid = grid.grid(direction="down", share=True)
for s in states[::3]:
ax = subgrid.next(1.0 / 2) # Make these 1/2 of the size
ax.plot(s.xyz[0] / u.micron, s.get_density())
ax.set_xlabel("x")
subgrid = grid.grid(
direction="right", share=True, space=0.1
) # Some space might help lables not clash
for s in states:
ax = subgrid.next(2)
ax.plot(s.xyz[0] / u.micron, s.get_density())
plt.tight_layout()
Note that tight_layout() does not work properly here. Not sure why. Probably the solution is to use the new constrained layout feature of matplotlib once it is settled.
